MENNEKES 9382

Wall Mounted Receptacles
Screw Terminals
External Fixing

Ampere : 32A
Poles : 3+N+E (5P)
Voltage : 400 V
Earth Position : 6 h
Hertz : 50 and 60 Hz
Connection Technology : Screw Terminals
Contact : Standard

Protection Type : IP67

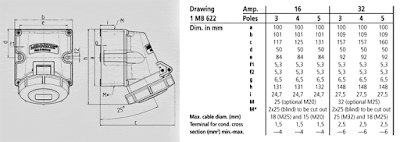

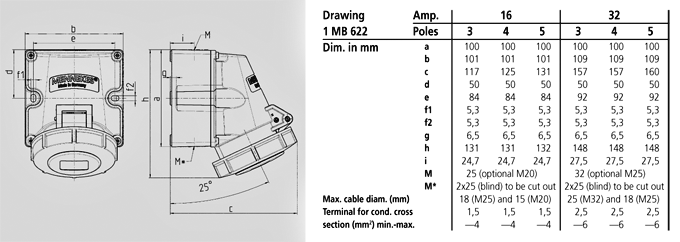

Dimensional Drawing
