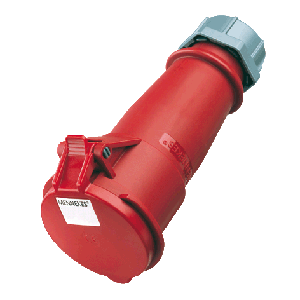

MENNEKES 526

Connector AM-TOP
Screw Terminals
Single Part Body

Ampere : 32A
Poles : 3+E (4P)
Voltage : 400 V
Earth Position : 6 h
Hertz : 50 and 60 Hz
Connection Technology : Screw Terminals
Contact : Standard
Protection Type : IP44

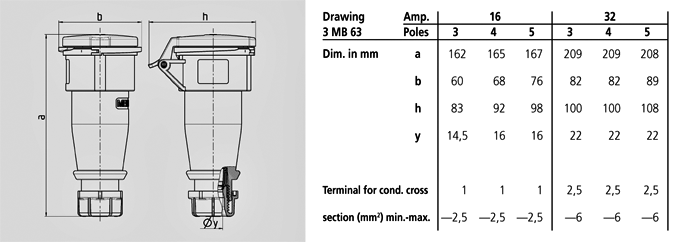

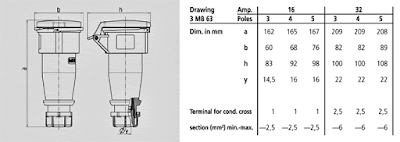

Dimensional Drawing
