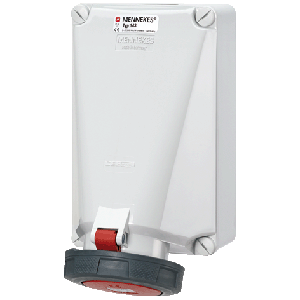

MENNEKES 143
Wall Mounted Receptacles
Screw Terminals
Products with Pilot Contact on request
Ampere : 125A
Poles : 3+N+E (5P)
Voltage : 400 V
Earth Position : 6 h
Hertz : 50 and 60 Hz
Connection Technology : Screw Terminals
Contact : Standard
Protection Type : IP67
|

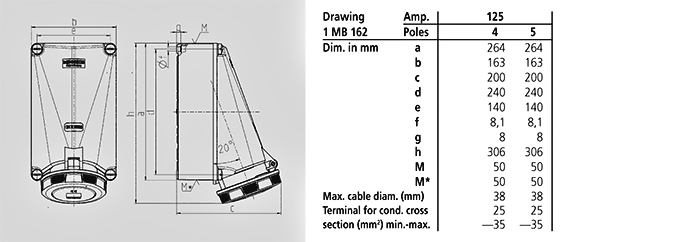

Dimensional Drawing |
