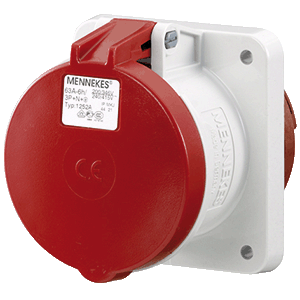

MENNEKES 1252A

MENNEKES 1252A

Panel Mounted Receptacles
Screw Terminals
Straight

Ampere : 63A
Poles : 3+N+E (5P)
Voltage : 400 V
Earth Position : 6 h
Hertz : 50 and 60 Hz
Connection Technology : Screw Terminals
Contact : Standard
Protection Type : IP44

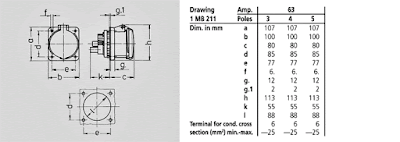

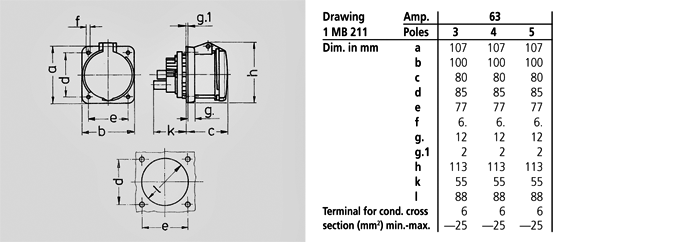

Dimensional Drawing
